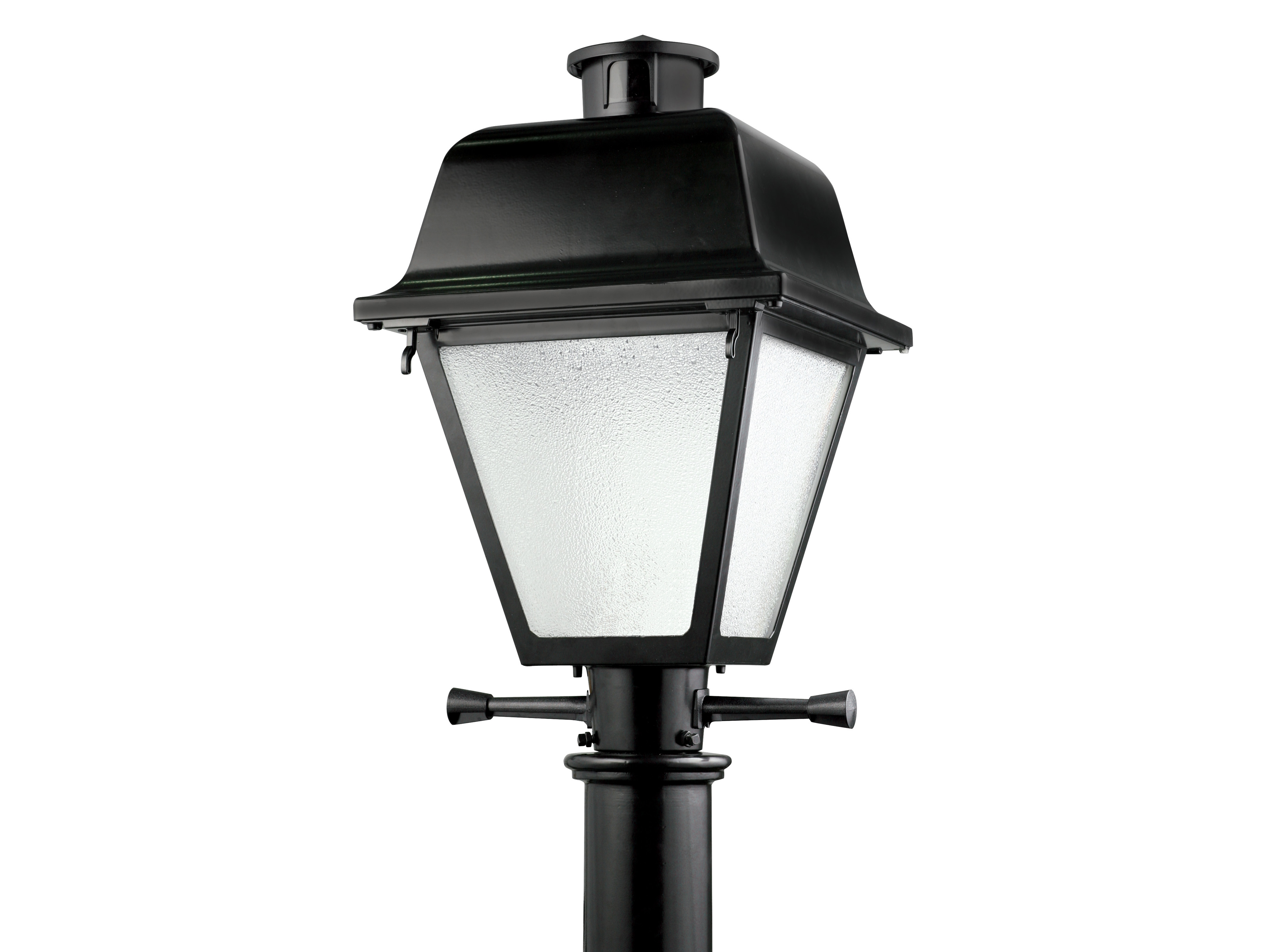

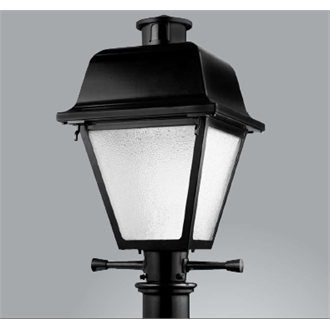

Series ARDL LED - American Rev Deluxe

Colonial LED Post-top Lantern

By American Electric Lighting

    DLC Standard
  • Overview
  • Specifications
As municipalities and utilities initiate conversions to LED Post-top in common applications, the new ARDL LED is designed to have utility grade standardized features for a great value! ARDL LED has been upgraded to include the new LEM 10, 20 and 30 LED modules from AEL for improved energy efficiency and reduced maintenance. Together, the ARDL (standard version) and ARDCL (full cutoff version) combine to give a great set of high performance Post-top LED solutions for applications for the “American Revolution Deluxe” style.
Read More
Read Less
Light Source LED - Static
Lumens 2000 LM, 3000 LM, 4000 LM, 5000 LM, 6000 LM, 7000 LM, 8000 LM, 9000 LM, 10,000 LM, 11,000 LM, 12,000 LM, 12,500 LM
CCT / LED Color 2700 K, 3000 K, 4000 K, 5000 K
CRI 70
Compliance Listing DLC Standard
Regulatory Listing CSA, UL
Product Type Post Top
Voltage Rating 120-277, 347-480
Mounting Type Post Top
Mounting Location Pole
Primary Material Aluminum
No. of Fixtures 1
Architectural Style Historical
Series ARDL

Read More Read Less

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET ARDL LED Spec Sheet ARDL Post Top LED 7/19/2023 View

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Spectral Data Sheets

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions ARDL-ARDCL Installation Instructions.pdf ARDL-ARDCL Installation Instructions 2/14/2022 View

  • Utility Rebate Search

    To look-up a rebate for this product, please follow the steps below:

    Step 1: Enter the Zip Code or Select the State and Utility

    Step 2: Ensure that the correct Product Category is selected if there is more than one option


  • Replacement Parts

    Document Type Document Title Description Updated View
    Replacement Part Spec Sheet ARDL LEM INSTALLATION INSTRUCTIONS 912-00429-001.pdf ARDL LEM INSTALLATION INSTRUCTIONS 12/27/2022 View
    Replacement Part Spec Sheet ARDL Repair Kits.pdf ARDL Replacement Kits 4/11/2023 View

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures AEL Utility Lanterns Brochure.pdf AEL Utility Lanterns Brochure 9/2/2022 View
    Nomenclature Crossover AEL Lantern LED Crossover Tool.xls AEL Lantern LED Crossover Tool 9/20/2022
    Sell Sheet ARDL Sales Sheet ARDL Sales Sheet 9/2/2022 View
