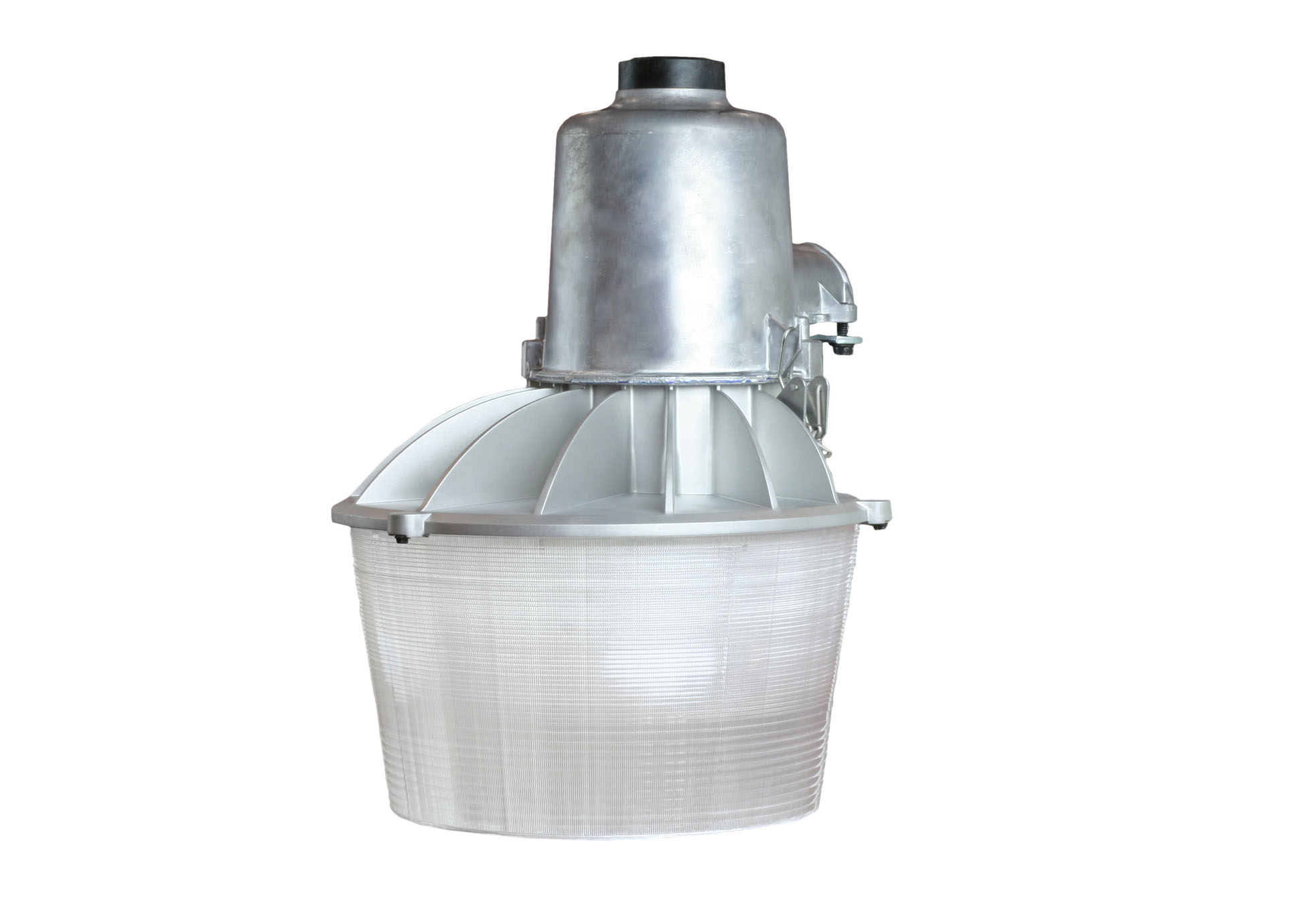

Series LNH2 LED NEMA Head Security Luminaire
Series LNH2 LED NEMA Head Security Luminaire
LNH2 NEMA HEAD
LNH2 Mongoose LED

Series LNH2

LED Nema Security Light

by American Electric Lighting

  • DesignLights Consortium®

LED NEMA Head solution for security areas, storage yards, loading areas, receiving areas, rural residences


Environmentally friendly NEMA Head LED security light that can provide up to 80% reduction in energy over traditional HID products. Also, long life of solid state electronics and LED light source mean another 50% savings in maintenance and related expenses.


- Replaces 50 - 150 watt HPS
- Replaces 175 watt MV
- 2,300 - 6,600 lumens
- 4000K white light (>70CRI) with 90% LLD (50K Hours)
- Tool-less access to electrical components
- Class C surge protection
- Available in 120-277v with Type III and Type V distributions.
- Standard with 3-pin NEMA photocontrol receptacle
- Optional 7-pin receptacles.
- Available with or without mast arm.

  • Suggested Replacement Products

  • Spec Sheets

    Document Type Document Title Description Updated View
    {{document.DocumentType}} {{document.DocumentTitle}} {{document.Description}} {{document.UpdatedDate | date: 'MM/dd/yy'}} View

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.<br >
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report

    • Request BIM or IES Files

      CLICK HERE to start your request for a BIM Model or IES file.

  • Specifications

    Brand American Electric Lighting
    CRI 70
    CCT 4000 K
    Environment Outdoor
    Light Source LED - Static
    Regulatory Listing CSA
    Compliance Listing DLC Standard
    Mounting Type Arm Mount
    Product Type NEMA Head
    Series LNH2
    Voltage Rating 120-277
