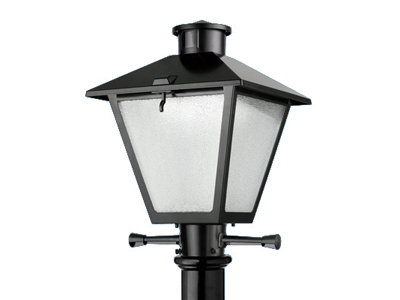

Product Image
american revolution-247_large

Series 247 - American Revolution

Colonial

By American Electric Lighting

  • Overview
  • Specifications
Streetscapes, walkways, pathways, parks

Preferred Products:

247 10S RN 120 R3 AY

247 15S RN 120 R3 AY

247 17M SC MT1 R3 AY

247 10S RN 120 R5 AY

247 15S RN 120 R5 AY


Die-cast aluminum housing and hood for long-life performance. Optical assembly designed for maximum performance. Hinged hood and captive screw provision afford quick, easy access to electrical and optical area for relamping or servicing. ~13;~10;

Slipfitter with three set screws allows secure installation to pole sizes 2-3/8" or 3" OD. E39 mogul base socket standard. All electrical components warranted by American Electric Lighting's 6-year guarantee. ~13;~10;

Link to 247 Brochure

Read More
Read Less
Light Source HID
Regulatory Listing UL
Product Type Post Top
Voltage Rating 120-277, 347-480
Mounting Type Post Top
Mounting Location Pole
Primary Material Aluminum
No. of Fixtures 1
Architectural Style Historical
Series 247

  • Suggested Replacement Products

PRODUCT INFORMATION

  • Spec Sheets

    Document Type Document Title Description Updated View
    SPEC SHEET dl-247-a.pdf Series 247 – American Revolution 2/3/2021 View

  • Photometry & Revit (BIM)

    Use %(percent) to separate search terms.
    Clear Filters

    {{pager.startIndex + 1}} - {{pager.endIndex + 1}} of {{pager.totalItems | number:0}} results

    Description Report Design Tools
    {{photometryItem.Catalog}} Report
    CLICK HERE to start your request for a BIM Model or IES file.

  • Technical Documents (e.g. Instruction Sheets, MSDS, CAD)

    Document Type Document Title Description Updated View
    Installation Instructions American Revolution 247 Cutoff American Revolution 247 Cutoff View
    Installation Instructions American Revolution-247 American Revolution-247 View

  • Utility Rebate Search

  • Replacement Parts

  • Confidential Documents

  • Marketing Material (e.g. Brochures, Sell Sheets, FAQs, )

    Document Type Document Title Description Updated View
    Brochures 247 Brochure 247 Brochure View
